OSDI lab II

Objective

• Learn how to build a customized BIOS and show some message on system startup.
• Understand kernel booting flow and boot a ‘hello world’ program.
• Learn how to use BIOS interrupt call to do I/O tasks.
• Learn how to modify linux-0.11 bootsect.s and the build system to create a multiboot kernel image.

---

Lab2.1 - Build SEABIOS, add some message before system startup

git clone https://git.seabios.org/seabios.git seabios
cd seabios/
make menuconfig
make

Print message in enable_vga_console function in src/bootsplash.c.

void
enable_vga_console(void)
{
    dprintf(1, "Turning on vga text mode console\n");
    struct bregs br;

    /* Enable VGA text mode */
    memset(&br, 0, sizeof(br));
    br.ax = 0x0003;
    call16_int10(&br);

    printf("This is OSDI lab2.\n");
    // Write to screen.
    printf("SeaBIOS (version %s)\n", VERSION);
    display_uuid();
}

Use the qemu -bios option to load customized BIOS.

qemu-system-i386 -m 16M -boot a -fda Image -hda osdi.img -bios seabios/out/bios.bin

Because the customized BIOS is part of our lab, so I push it to new repo and add the submodule to osdi.

git submodule add bios-url bios-in-osdi-path

After that, I can update the customized BIOS even though we develop the BIOS and OSDI at different repo using the following command.

git submodule update bios-name

---

Lab2.2 - Add image before system startup

We want to load the image when BIOS is loading.

Firstly, we want to find which function can help us to do that. There is a function called enable_bootsplash @ src/bootsplash.c.

void
enable_bootsplash(void)
{
    if (!CONFIG_BOOTSPLASH)
        return;
    /* splash picture can be bmp or jpeg file */
    dprintf(3, "Checking for bootsplash\n");
    u8 type = 0; /* 0 means jpg, 1 means bmp, default is 0=jpg */
    int filesize;
    u8 *filedata = romfile_loadfile("bootsplash.jpg", &filesize);
    if (!filedata) {
        filedata = romfile_loadfile("bootsplash.bmp", &filesize);
        if (!filedata)
            return;
        type = 1;
    }

    ...
}

This function will check the CONFIG_BOOTSPLASH and bootsplash image.

Secondly, we find that the enable_bootsplash will be called by interactive_bootmenu @ src/boot.c.

// Show IPL option menu.
void
interactive_bootmenu(void)
{
    // XXX - show available drives?
    printf("CONFIG_BOOTMENU: %d\n", CONFIG_BOOTMENU);
    printf("show-boot-menu: %d\n", romfile_loadint("etc/show-boot-menu", 1));
    if (! CONFIG_BOOTMENU || !romfile_loadint("etc/show-boot-menu", 1))
        return;

    while (get_keystroke(0) >= 0)
        ;

    char *bootmsg = romfile_loadfile("etc/boot-menu-message", NULL);
    int menukey = romfile_loadint("etc/boot-menu-key", 1);
    printf("%s", bootmsg ?: "\nPress ESC for boot menu.\n\n");
    free(bootmsg);

    u32 menutime = romfile_loadint("etc/boot-menu-wait", DEFAULT_BOOTMENU_WAIT);
    printf("menutime: %d\n", menutime);
    enable_bootsplash();
    ...

It seems that it is the function to provide the boot menu (i.e, booting from which boot device). This function will also check the CONFIG_BOOTMENU and the file etc/show-boot-menu. If we print the config before the first if condition, we will find that

Therefore, the CONFIG_BOOTMENU is 1 but etc/show-boot-menu is 0, so the interactive_bootmenu will return early without executing the rest of code including the enable_bootsplash method.

After did some researches, qemu provide an option -fw_cfg to provide some file as

• -fw_cfg [name=]<item_name>,file=<path>. or
• -fw_cfg [name=]<item_name>,string=<string>

So I revise the qemu command to

qemu-system-i386 -m 16M -boot a -fda Image -hda ../osdi.img -bios seabios/out/bios.bin -fw_cfg name=etc/show-boot-menu,string=1

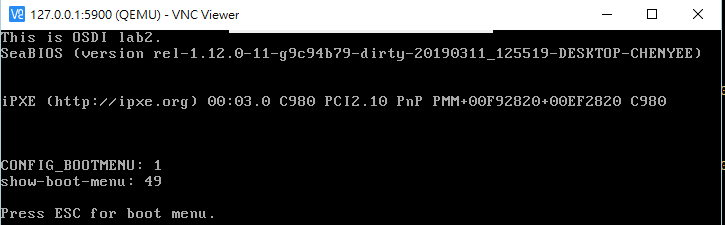

After that, the result became

It did enter the rest of code and ready to execute boot menu, and because the enable_bootsplash will check the image before load it, and we provide the bootsplash image as following.

qemu-system-i386 -m 16M -boot a -fda Image -hda ../osdi.img -bios seabios/out/bios.bin -fw_cfg name=etc/show-boot-menu,string=1 -fw_cfg name=bootsplash.jpg,file=bootsplash.jpg

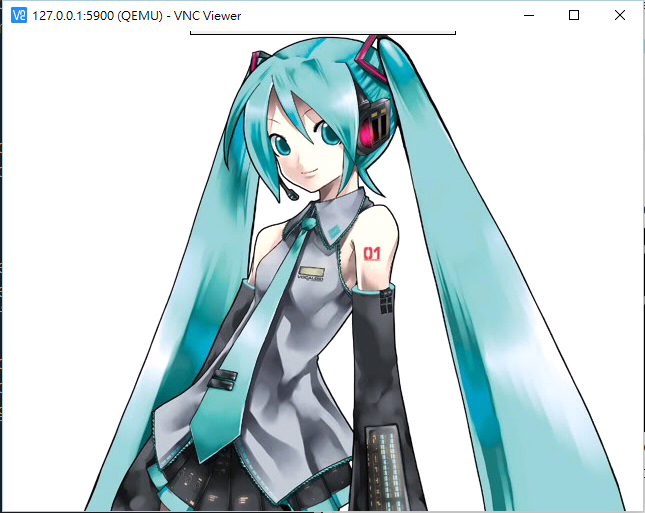

It work!

My friends also found that another qemu option -boot provide the same functionality.

qemu-system-i386 -m 16M -boot order=a,menu=on,splash=bootsplash.jpg  -fda Image -hda ../osdi.img -bios seabios/out/bios.bin

Which will be more clever and elegant!

Lab2.3 - Boot the hello world program

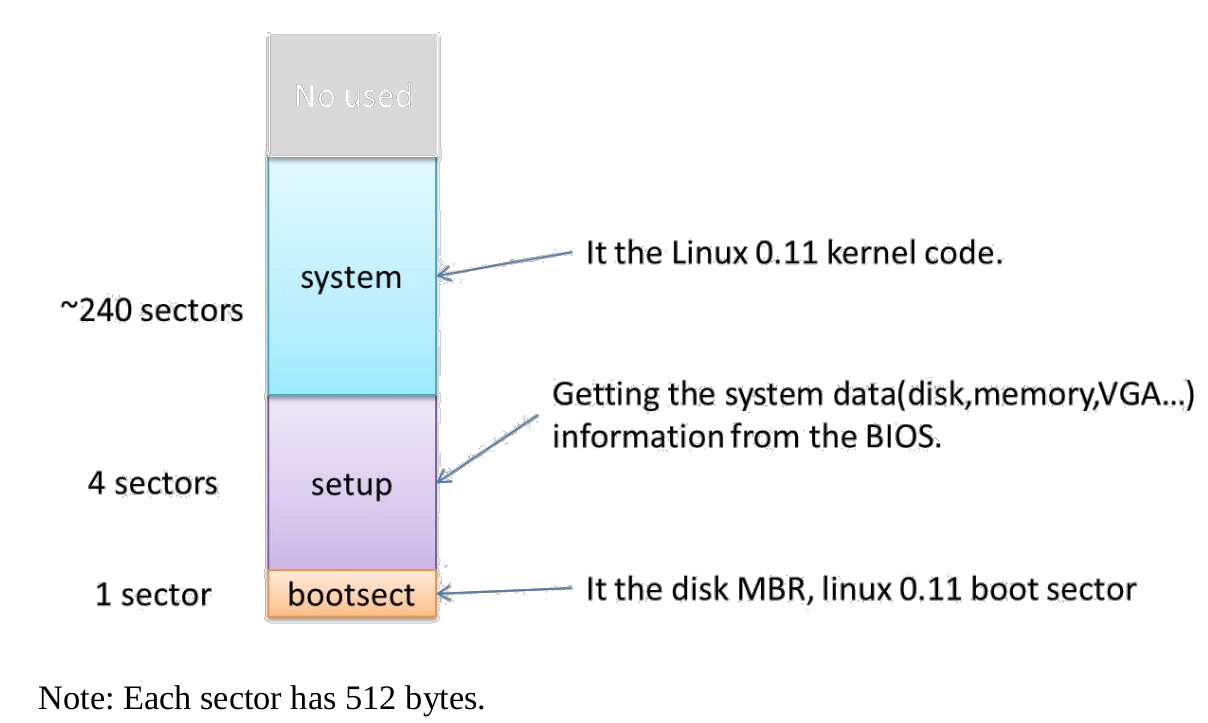

In this time, we will revise the kernel image structure and boot the given hello. We will revise the image from to

Makefile

Of course we will revise the Makefile and build.sh.

Firstly, put the hello.s to boot, and revise the boot/Makefile

...

all: bootsect hello setup
...

hello: hello.s
	@$(AS) -o hello.o hello.s
	@$(LD) $(LDFLAGS) -o hello hello.o
	@objcopy -R .pdr -R .comment -R.note -S -O binary hello
...

clean:
	@rm -f bootsect bootsect.o setup setup.o head.o hello hello.o

Just add new rule for hello and remember to clean its object file when executing make clean.

Secondly, revise the Makefile

...
Image: boot/bootsect boot/hello boot/setup tools/system
	@cp -f tools/system system.tmp
	@strip system.tmp
	@objcopy -O binary -R .note -R .comment system.tmp tools/kernel
	@chmod +x tools/build.sh
	@tools/build.sh boot/bootsect boot/hello boot/setup tools/kernel Image $(ROOT_DEV)
	@rm system.tmp
	@rm tools/kernel -f
	@sync
...

Update the Image prerequisites and add hello to the tools/build.sh parameter.

Thirdly, revise the tools/build.sh.

#!/bin/bash
# build.sh -- a shell version of build.c for the new bootsect.s & setup.s
# author: falcon <wuzhangjin@gmail.com>
# update: 2008-10-10

bootsect=$1
hello=$2
setup=$3
system=$4
IMAGE=$5
root_dev=$6

# Set the biggest sys_size
# Changes from 0x20000 to 0x30000 by tigercn to avoid oversized code.
SYS_SIZE=$((0x3000*16))

# set the default "device" file for root image file
if [ -z "$root_dev" ]; then
	DEFAULT_MAJOR_ROOT=3
	DEFAULT_MINOR_ROOT=1
else
	DEFAULT_MAJOR_ROOT=${root_dev:0:2}
	DEFAULT_MINOR_ROOT=${root_dev:2:3}
fi

# Write bootsect (512 bytes, one sector) to stdout
[ ! -f "$bootsect" ] && echo "there is no bootsect binary file there" && exit -1
dd if=$bootsect bs=512 count=1 of=$IMAGE 2>&1 >/dev/null

# Write hello(512bytes, one sector) to stdout
[ ! -f "$hello" ] && echo "there is no hello binary file there" && exit -1
dd if=$hello seek=1 bs=512 count=1 of=$IMAGE 2>&1 >/dev/null

# Write setup(4 * 512bytes, four sectors) to stdout
[ ! -f "$setup" ] && echo "there is no setup binary file there" && exit -1
dd if=$setup seek=2 bs=512 count=4 of=$IMAGE 2>&1 >/dev/null

# Write system(< SYS_SIZE) to stdout
[ ! -f "$system" ] && echo "there is no system binary file there" && exit -1
system_size=`wc -c $system |cut -d" " -f1`
[ $system_size -gt $SYS_SIZE ] && echo "the system binary is too big" && exit -1
dd if=$system seek=6 bs=512 count=$((2888-1-1-4)) of=$IMAGE 2>&1 >/dev/null

# Set "device" for the root image file
echo -ne "\x$DEFAULT_MINOR_ROOT\x$DEFAULT_MAJOR_ROOT" | dd ibs=1 obs=1 count=2 seek=508 of=$IMAGE conv=notrunc  2>&1 >/dev/null

Remember that at the Makefile, we put the hello as the second parameter, and we also need to update the parameter index of rest.

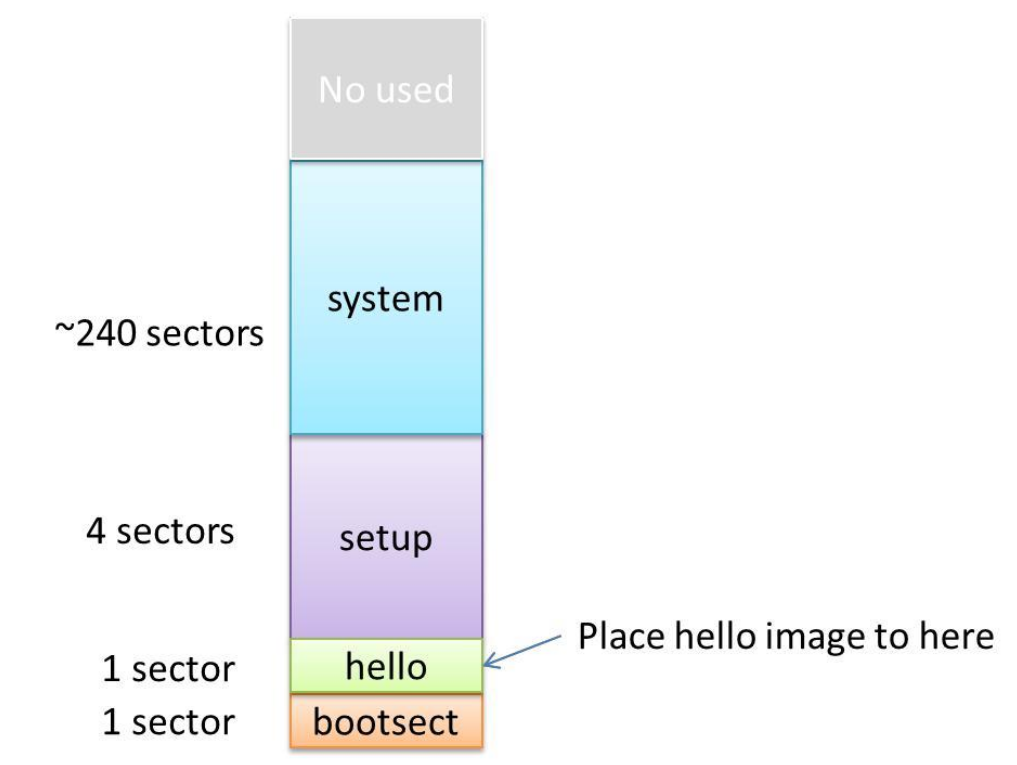

Link the hello to Image, order matter! We want to put the bootsect, hello, setup and system, so we must follow this order.

The hello contain 512 bytes and occupied 1 sector, that is the bs and count option for.

So far, we insert the hello to new image, and we are ready to boot it.

How OS boot?

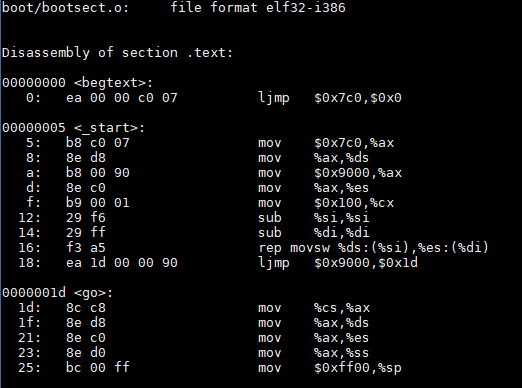

At boot/bootsect.s

	ljmp    $BOOTSEG, $_start
_start:
	mov	$BOOTSEG, %ax
	mov	%ax, %ds
	mov	$INITSEG, %ax
	mov	%ax, %es
	mov	$256, %cx
	sub	%si, %si
	sub	%di, %di
	rep
	movsw
	ljmp	$INITSEG, $go

1. Long jump to $BOOTSEG:$_start when OS is loaded by BIOS.

2. Put $BOOTSEG to %ds, $INITSEG to %es and 256 to %cx.

3. Zero the %si and %di.

4. Repeat movsw until %cx is zero (i.e. copy itself to from $BOOTSEG to $INITSEG, total size is 512 bytes).

   Because the counter of rep will decrease by 1 after executed, so the movw will execute 256 times!

   movw will move one word (2 bytes in 16-bits CPU) from %ds:%si to %es:%di.

   First step:

   %ds = $BOOTSEG
   %si = 0
   %es = $INITSEG
   %di = 0

   # Copy from $BOOTSEG:0 to $INITSEG:0
   movw


   Second step: Because the %si and %di will increase by 2 (bytes, one word in 16-bits CPU) after done it. So

   %ds = $BOOTSEG
   %si = 2
   %es = $INITSEG
   %di = 2

   # Copy from $BOOTSEG:2 to $INITSEG:2
   movw


   After 256 times, the $BOOTSEG:0 - $BOOTSEG:256 will copy to $INITSEG:0 - $INITSEG:256. That's bootsect itself!

5. Long jump to $INITSEG:$go.

---

go:	mov	%cs, %ax 			# after long jump, %cs become $INITSEG
	mov	%ax, %ds
	mov	%ax, %es
# put stack at 0x9ff00.
	mov	%ax, %ss
	mov	$0xFF00, %sp		# arbitrary value >>512

1. Move $INITSEG to %ds, %es and %ss. After long jump, the %cs will store the last segment it jump, that is $INITSEG.
2. Put the top of stack %sp to a huge address.

---

# load the setup-sectors directly after the bootblock.
# Note that 'es' is already set up.
load_setup:
	mov	$0x0000, %dx		# drive 0, head 0
	mov	$0x0002, %cx		# sector 2, track 0
	mov	$0x0200, %bx		# address = 512, in INITSEG
	.equ    AX, 0x0200+SETUPLEN
	mov     $AX, %ax		# service 2, nr of sectors
	int	$0x13			# read it
	jnc	ok_load_setup		# ok - continue
	mov	$0x0000, %dx
	mov	$0x0000, %ax		# reset the diskette
	int	$0x13
	jmp	load_setup

1. In this time, we want to read drive 0 (floppy), from 0 cylinder, 0 track, from 2'th sector and read SETUPLEN sectors, 0 head to memory based on address $INITSEG:$0x0200. (i.e. load the setup in memory)
2. If successfully read it, %cf will not be set, so that jnc ok_load_setup will jump to ok_load_setup.
3. Otherwise, reset the disk and try again.

---

Reference:

Drive table:

Register value	Meaning
DL = 00h	1st floppy disk ( "drive A:" )
DL = 01h	2nd floppy disk ( "drive B:" )
DL = 80h	1st hard disk
DL = 81h	2nd hard disk
DL = e0h	CD/DVD

---

INT 13h, AH = 02h: Read Sectors From Drive

Parameter:

Register	Meaning
AH	02h
AL	Sectors To Read Count
CH	Cylinder
CL	Sector
DH	Head
DL	Drive
ES:BX	Buffer Address Pointer

Results:

Register	Meaning
CF	Set On Error, Clear If No Error
AH	Return Code
AL	Actual Sectors Read Count

---

INT 13h, AH = 00h: Reset Disk System

Parameter:

Register	Meaning
AH	00h
DL	Drive (bit 7 set means reset both hard and floppy disks)

Results:

Register	Meaning
CF	Set on error
AH	Return Code

---

We can imitate the procedure to...

	.equ HELLOLEN, 1		# nr of hello-sectors
	.equ HELLOSEG, 0x0100	# hello starts here
...

go:	mov	%cs, %ax 			# after long jump, %cs become $INITSEG
	mov	%ax, %ds
	mov	%ax, %es
# put stack at 0x9ff00.
	mov	%ax, %ss
	mov	$0xFF00, %sp		# arbitrary value >>512

# Lab 2
load_hello:
   mov	$0x0000, %dx		# drive 0, head 0
   mov	$0x0002, %cx		# sector 2, track 0
   mov $HELLOSEG, %ax		# segment
   mov %ax, %es
   mov	$0x0000, %bx		# offset, address = 0x0100
   .equ    AX, 0x0200+HELLOLEN
   mov     $AX, %ax			# service 2, nr of sectors
   int	$0x13				# read it
   jnc	ok_load_hello		# ok - continue
   mov	$0x0000, %dx
   mov	$0x0000, %ax		# reset the diskette
   int	$0x13
   jmp	load_hello

ok_load_hello:
   ljmp $HELLOSEG, $0 # Jump to hello

...

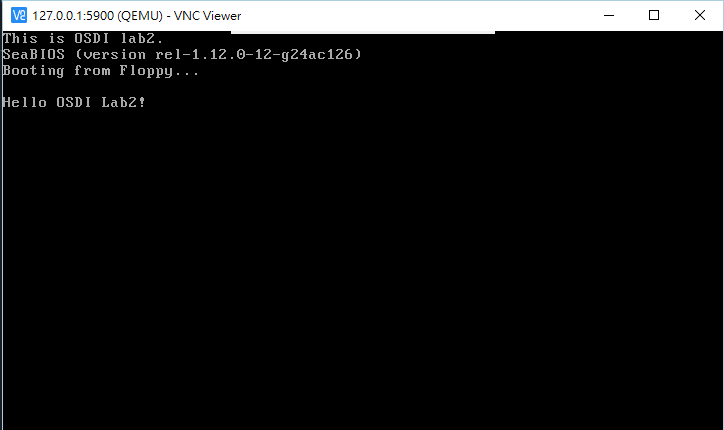

It works!

---

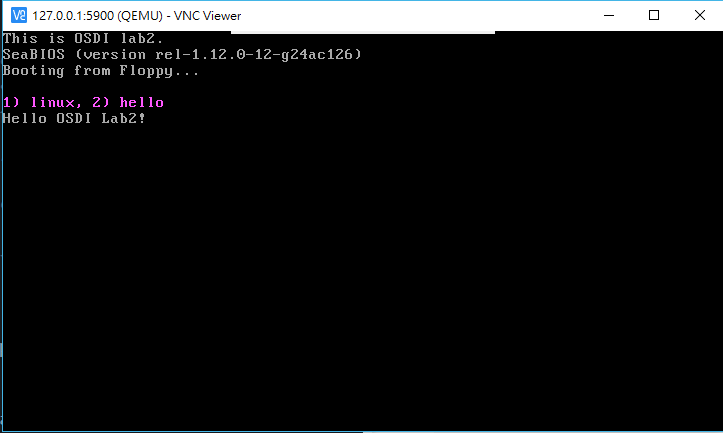

Lab2.4 - Multiboot support

In this experiment, you need to implement a simple keyboard character reader that when user:

• Press ‘1’, it boots the linux-0.11 Image(just like lab1).

• Press ‘2’, it boots the hello world program.

go:	mov	%cs, %ax 			# after long jump, %cs become $INITSEG
	mov	%ax, %ds
	mov	%ax, %es
# put stack at 0x9ff00.
	mov	%ax, %ss
	mov	$0xFF00, %sp		# arbitrary value >>512

boot_menu:
   # Print some inane message
   mov	$0x03, %ah		# read cursor pos
   xor	%bh, %bh		# page number
   int	$0x10

   mov	$21, %cx		# string length
   mov	$0x000D, %bx		# page 0, attribute 7 (normal)
   #lea	option, %bp
   mov     $option, %bp		# point to message
   mov	$0x1301, %ax		# write string, move cursor
   int	$0x10

   mov $0x00, %ah
   int $0x16

   cmp $49, %al				# 1 ascii
   je load_setup
   cmp $50, %al				# 2 ascii
   je load_hello
   jmp boot_menu

   ...

msg1:
	.byte 13,10
	.ascii "Loading system ..."
	.byte 13,10,13,10

option:
	.byte 13,10
	.ascii "1) linux, 2) hello"
	.byte 13,10,13,10

1. We locate the cursor.
2. Print the string to show the boot option.
3. Read the keyboard
4. Goto load_setup if pressing 1, goto load_hello if pressing 2.
5. Otherwise, go to boot_menu again.

---

Reference:

INT 10h, AH = 03h: Get cursor position and shape

Parameter:

Register	Meaning
AH	03h
BH	Page Number

Results:

Register	Meaning
AX = 0
CH	Start scan line
CL	End scan line
DH	Row
DL	Column

---

INT 10h, AH = 13h: Write string

Parameter:

Register	Meaning
AH	13h
AL	Write mode
BH	Page Number
BL	Color
CX	String length
DH	Row
DL	Column
ES:EP	Offset of string

---

INT 16h, AH = 00h: Read keystroke

Parameter:

Register	Meaning
AH	00h

Results:

Register	Meaning
AH	Scan code of the key pressed down
AL	ASCII character of the button pressed

---

BIOS color:

Hex	Color
0	Black
1	Blue
2	Green
3	Cyan
4	Red
5	Magenta
6	Brown
7	Light Gray
8	Dark Gray
9	Light Blue
A	Light Green
B	Light Cyan
C	Light Red
D	Light Magenta
E	Yellow
F	White

---

ASCII:

Dec	Meaning
10	Line feed (\n)
49	1
50	2

---

load_setup:
	mov	$0x0000, %dx		# drive 0, head 0
	mov	$0x0003, %cx		# sector 3, track 0
	mov	$0x0200, %bx		# address = 512, in INITSEG
	.equ    AX, 0x0200+SETUPLEN
	mov     $AX, %ax		# service 2, nr of sectors
	int	$0x13			# read it
	jnc	ok_load_setup		# ok - continue
	mov	$0x0000, %dx
	mov	$0x0000, %ax		# reset the diskette
	int	$0x13
	jmp	load_setup

load_hello remain the same, but the setup is located at 3rd sector, so we revise the %cl to 0x03.

It seems that all work are done. However, after making and run it.

Hello runs pretty well.

After press 1, I want to load the setup, but the OS begin to reboot continuously.

It seems that we didn't run the ljmp $SETUPSEG, $0. Thus, we must continue to trace the rest of code.

ok_load_setup:

# Get disk drive parameters, specifically nr of sectors/track

	mov	$0x00, %dl
	mov	$0x0800, %ax		# AH=8 is get drive parameters
	int	$0x13
	mov	$0x00, %ch
	#seg cs
	mov	%cx, %cs:sectors+0	# %cs means sectors is in %cs
    ...

1. Get sectors of track.
2. Set %ch (%cx[15:8]) to 0x00.
3. Because we boot from floppy (%dl = 0), and its maximum sectors per track will not exceed 256 (18 sectors per track normally), so %cx[7:6] will be 0.
4. Move %cx to sectors.

---

Reference:

INT 13h, AH = 08h: Read Drive Parameters

Parameter:

Register	Meaning
AH	08h
DL	drive index
ES:DI	set to 0000h:0000h to work around some buggy BIOS

Results:

Register	Meaning
CF	Set On Error, Clear If No Error
AH	Return Code
DL	number of hard disk drives
DH	logical last index of heads = number_of - 1 (because index starts with 0)
CX	[7:6][15:8] logical last index of cylinders = number_of - 1 (because index starts with 0) [5:0] logical last index of sectors per track = number_of (because index starts with 1)
BL	drive type (only AT/PS2 floppies)
ES:DI	pointer to drive parameter table (only for floppies)

---

ok_load_setup:
   ...
	mov	$SYSSEG, %ax
	mov	%ax, %es		# segment of 0x010000
	call	read_it
	call	kill_motor
   ...

Put $SYSSEG in %es, and call read_it.

read_it:
	mov	%es, %ax
	test	$0x0fff, %ax
die:	jne 	die			# es must be at 64kB boundary
	xor 	%bx, %bx		# bx is starting address within segment

1. TEST 0x0fff and 0x1000. TEST is bitwise AND and result of TEST is 0, ZF is set to 1. ref
2. JNE will jump when ZF is 0, so it will continue executing the next instruction. ref
3. Zero %bx

rp_read:
	mov 	%es, %ax
 	cmp 	$ENDSEG, %ax		# have we loaded all yet?
	jb	ok1_read
	ret

1. Put %es to %ax ($SYSSEG).
2. Compare $ENGSEG(0x4000) and %ax (0x1000).
3. In AT&T syntax, %ax will subtract $ENGSEG. Result is 0xD000. SF and CF will be set. ref
4. Because jb will jump when CF is 1, so jump to ok1_read. ref
5. Otherwise, return to last callee.

sread:	.word 1+ SETUPLEN	# sectors read of current track
...
ok1_read:
	#seg cs
	mov	%cs:sectors+0, %ax
	sub	sread, %ax
	mov	%ax, %cx
	shl	$9, %cx
	add	%bx, %cx
	jnc 	ok2_read
	je 	ok2_read
	xor 	%ax, %ax
	sub 	%bx, %ax
	shr 	$9, %ax

1. Move sectors to %ax and subtract sread. That is un-read sectors.
2. Calculate the total bytes of un-read sectors (512 bytes per sector) to %cx
3. If not greater or eqaul to $2^{16}$ (maximum register capacity), goto ok2_read.
4. Otherwise, count the maximum sectors can read (%ax).

ok2_read:
	call 	read_track

...

read_track:
	push	%ax
	push	%bx
	push	%cx
	push	%dx
	mov	track, %dx
	mov	sread, %cx
	inc	%cx
	mov	%dl, %ch
	mov	head, %dx
	mov	%dl, %dh
	mov	$0, %dl
	and	$0x0100, %dx
	mov	$2, %ah
	int	$0x13
	jc	bad_rt
	pop	%dx
	pop	%cx
	pop	%bx
	pop	%ax
	ret

1. Store all register.
2. In this time, we want to read drive 0 (floppy), from 0 cylinder, 0 track, from 1+SETUPLEN+1'th sector and read %al un-read sectors, 0 head to memory based on address $SYSSEG:0x0000. (i.e. load the system in memory)
3. If failed, %cf will be set, so that jc bad_rt will jump to bad_rt.
4. Load all registers.

At this very moment, we have already known the error may come from here. Because the system is located at 1 + 1 + 1 + SETUPLEN, so we must change sread to 1 + 1 + SETUPLEN.

---

Reference:

INT 13h, AH = 02h: Read Sectors From Drive

Parameter:

Register	Meaning
AH	02h
AL	Sectors To Read Count
CH	Cylinder
CL	Sector
DH	Head
DL	Drive
ES:BX	Buffer Address Pointer

Results:

Register	Meaning
CF	Set On Error, Clear If No Error
AH	Return Code
AL	Actual Sectors Read Count

---

After change sread to 1 + 1 + SETUP, it works!

---

Questions

1. What’s the meaning of ljmp $BOOTSEG, $_start(boot/bootsect.s)? What is the memory address of the beginning of bootsect.s? What is the value of $_start? From above questions, could you please clearly explain how do you jump to the beginning of hello image?

      objdump -D -mi386 -Maddr16,data16 boot/bootsect.o




2. What’s the purpose of es register when the cpu is performing int $0x13 with AH=0x2h?

   • base segment of memory address that put read sectors

3. Please change the Hello program’s font color to another

   • Change %bl register.

4. If we would like to swap the position of hello and setup in the Image. Where do we need to modify in tools/build.sh and bootsect.s?

   • The order of Image at tools/build.sh
   • The starting sector want to read when perform int 13h with AH=02h.

5. Please trace the SeaBIOS code. What are the first and the last instruction of the SeaBIOS? Where are they?

   • First instruction: reset_vector @ src/romlayout.S
   • Last instruction:
     • call_boot_entry @ src/boot.c in C
     • __farcall16 @ src/romlayout.S in asm
